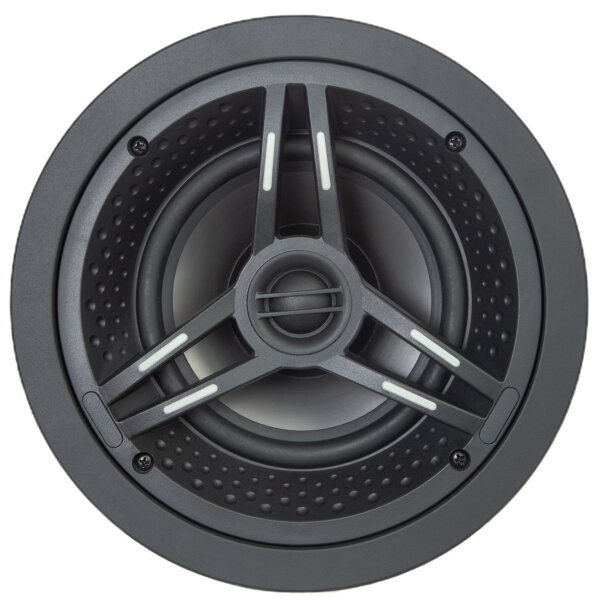

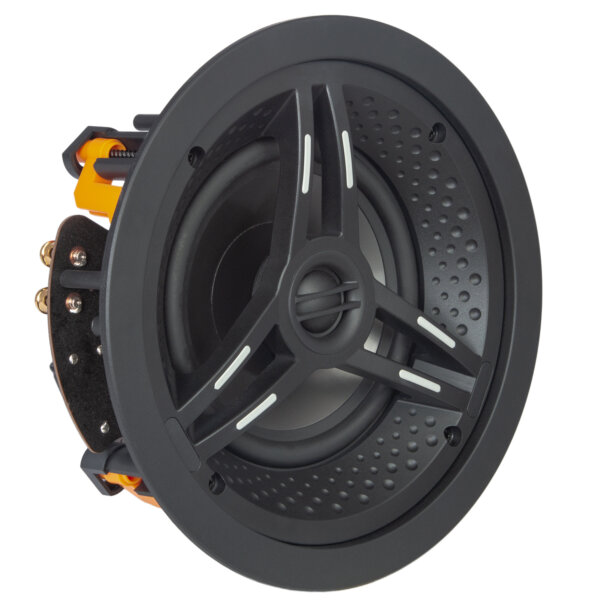

DX-Stage F Series- 6 1/2 ” In-Ceiling Speakers- IM Poly cone, 1″ Pivoting Silk Tweeter (Pair)

Feel the breath of the singer, the pick of the guitar, or the SFX of movies and games with crisp room-filling sound.


Featuring a 6 ½ – inch injection molded polypropylene woofer and 1-inch aimable silk dome tweeter the DX -FC6 is ideal for music, movies and gaming applications where excellent performance and dynamics are required.


6 1/2-Inch Injection Molded Polypropylene Woofer
The IM process yields stability, consistent performance and dynamics for many years.

1 Inch Aimable Silk Dome Tweeter
The pivoting tweeter can be aimed towards the ideal sweet spot position.

Low Profile Grill
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into any décor

Easy-Grip Tweeter Bridge
Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Precision Tooled Diffusion Baffle
scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.

Secure Connection
All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Timber and Performance Matched
Expect consistent dynamic and detailed sound in every Stage F series speaker


Woofer Size: 6-1/2″ / 160mm

Woofer Construction: Injection Molded Polypropylene Cone

Tweeter: 1″ / 25mm Pivoting Silk Dome

Frequency Response: 51Hz-20kHz

Impedance: 8 (Ohms)

Power Handling: 110 (Watts)

Sensitivity: 88 (dB)

Timbre: Timbre-Matched to all Focus Series Speakers

Dimensions: 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth

Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter

Mounting Depth: 3.7″ / 94mm

Other Specifications

  • Woofer Size6.5 (Inches)
Shipping Info
  • Length13 (Inches)
  • Width11 (Inches)
  • Height11.4 (Inches)
  • Weight3.92 (Lbs)
  • Unit of MeasurePair
  • UPC844039014412
Other Specifications
  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Injection Molded Polypropylene Cone
  • Tweeter 1″ / 25mm Pivoting Silk Dome
  • Frequency Response 51Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 110 (Watts)
  • Sensitivity 88 (dB)
  • Timbre Timbre-Matched to all Focus Series Speakers
  • Dimensions 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth
  • Hole Cutout Dimensions 8-1/4″ / 210 mm Diameter
  • Mounting Depth 3.7″ / 94mm
