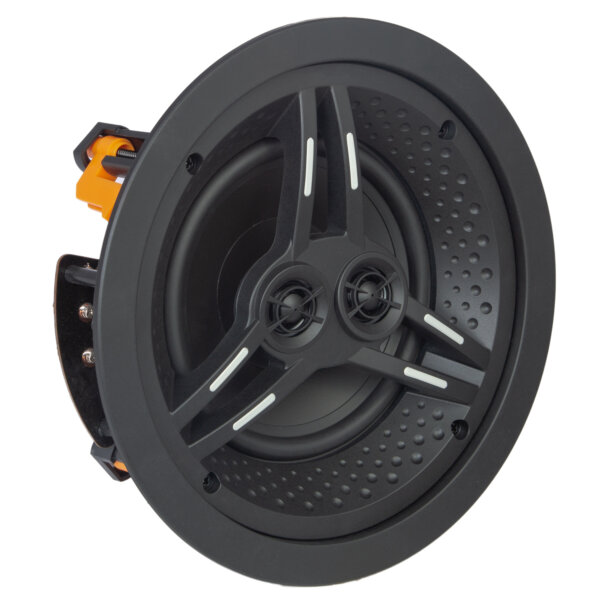

DX-Stage E Series- 6-1/2″ Stereo In-Ceiling Speaker- Poly Cone,Dual 1/2″ Mylar Tweeters (Each)

Enjoy a pleasant atmosphere throughout the home with natural ambient sound.


Featuring a 6 1/2 – Inch poly woofer cone, and dual voice coils and 1/2- inch Mylar tweeters the DX-EC6 DT
In-Ceiling Stereo Speaker is ideal for ambient music applications where a single speaker is needed to deliver stereo sound with reliable and consistent performance.


6 1/2-Inch Polypropylene Woofer
Low Crossover points and a poly woofer that’s mounted as close to the surface as possible delivers reliable and consistent performance

Dual 1/2″ Mylar Dome Tweeters
Silk dome tweeters deliver silky smooth highs which are pleasing to the ear

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area sound stage control, even when the speaker is mounted in less than ideal locations

Low Profile Grill
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into any décor

Easy-Grip Tweeter Bridge
Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Precision Tooled Diffusion Baffle
scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.

Secure Connection
All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Timber and Performance Matched
Expect consistent dynamic and detailed sound in every Stage E series speaker


Woofer Size: 6-1/2″ / 160mm

Woofer Construction: Polypropylene Cone

Tweeter: Dual 1/2″ / 13mm Fixed Mylar Dome

Frequency Response: 40Hz-20kHz

Impedance: 8 (Ohms)

Power Handling: 100 (Watts)

Sensitivity: 89 (dB)

Timbre: Timbre-Matched to all Evoke Series Speakers

Dimensions: 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth

Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter

Mounting Depth: 3.7″ / 94mm

Other Specifications

Shipping Info
  • Length10.6 (Inches)
  • Width10.5 (Inches)
  • Height5.8 (Inches)
  • Weight7.64 (Lbs)
  • Unit of MeasureEach
  • UPC844039014436
Other Specifications
  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Polypropylene Cone
  • Tweeter Dual 1/2″ / 13mm Fixed Mylar Dome
  • Frequency Response 40Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 100 (Watts)
  • Sensitivity 89 (dB)
  • Timbre Timbre-Matched to all 400 Series Speakers
  • Dimensions 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth
  • Hole Cutout Dimensions 8-1/4″ / 210 mm Diameter
  • Mounting Depth 3.7″ / 94mm
