Description

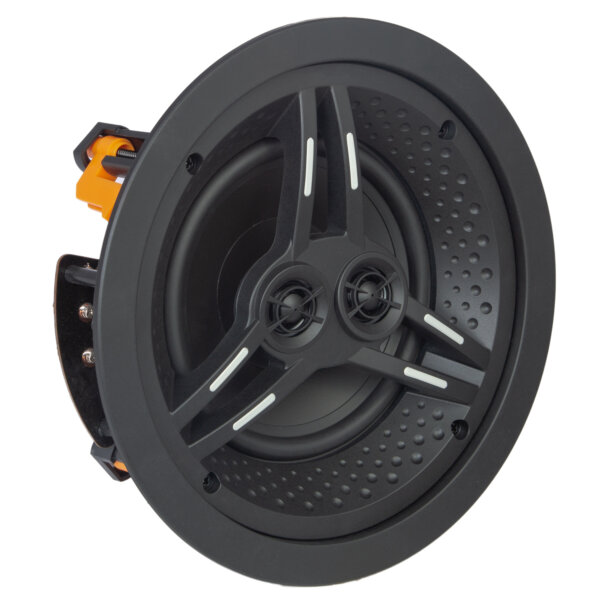

Featuring a 6 1/2 – Inch poly woofer cone, and dual voice coils and 1/2- inch Mylar tweeters the DX-EC6 DT
In-Ceiling Stereo Speaker is ideal for ambient music applications where a single speaker is needed to deliver stereo sound with reliable and consistent performance.
Features
6 1/2-Inch Polypropylene Woofer
Low Crossover points and a poly woofer that’s mounted as close to the surface as possible delivers reliable
and consistent performance
Dual 1/2″ Mylar Dome Tweeters
Silk dome tweeters deliver silky smooth highs which are pleasing to the ear
Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area sound stage control, even when the speaker is mounted
in less than ideal locations
Low Profile Grill
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into
any décor
Easy-Grip Tweeter Bridge
Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one.
We even protect the tweeter from accidental finger pokes
Precision Tooled Diffusion Baffle
scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.
Secure Connection
All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Timber and Performance Matched
Expect consistent dynamic and detailed sound in every Stage E series speaker
Specifications
Woofer Size: 6-1/2″ / 160mm
Woofer Construction: Polypropylene Cone
Tweeter: Dual 1/2″ / 13mm Fixed Mylar Dome
Frequency Response: 40Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 100 (Watts)
Sensitivity: 89 (dB)
Timbre: Timbre-Matched to all Evoke Series Speakers
Dimensions: 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth
Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter
Mounting Depth: 3.7″ / 94mm
