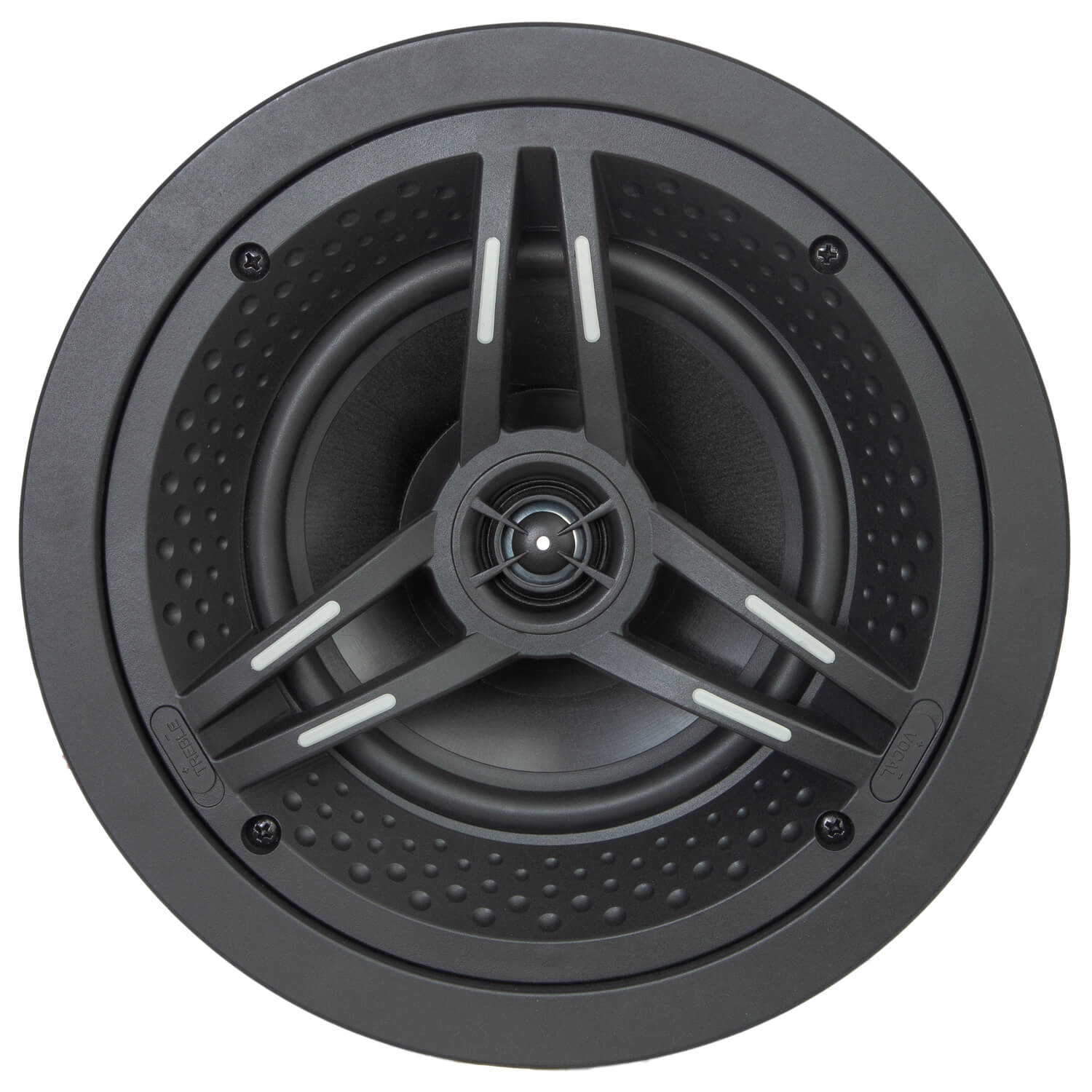

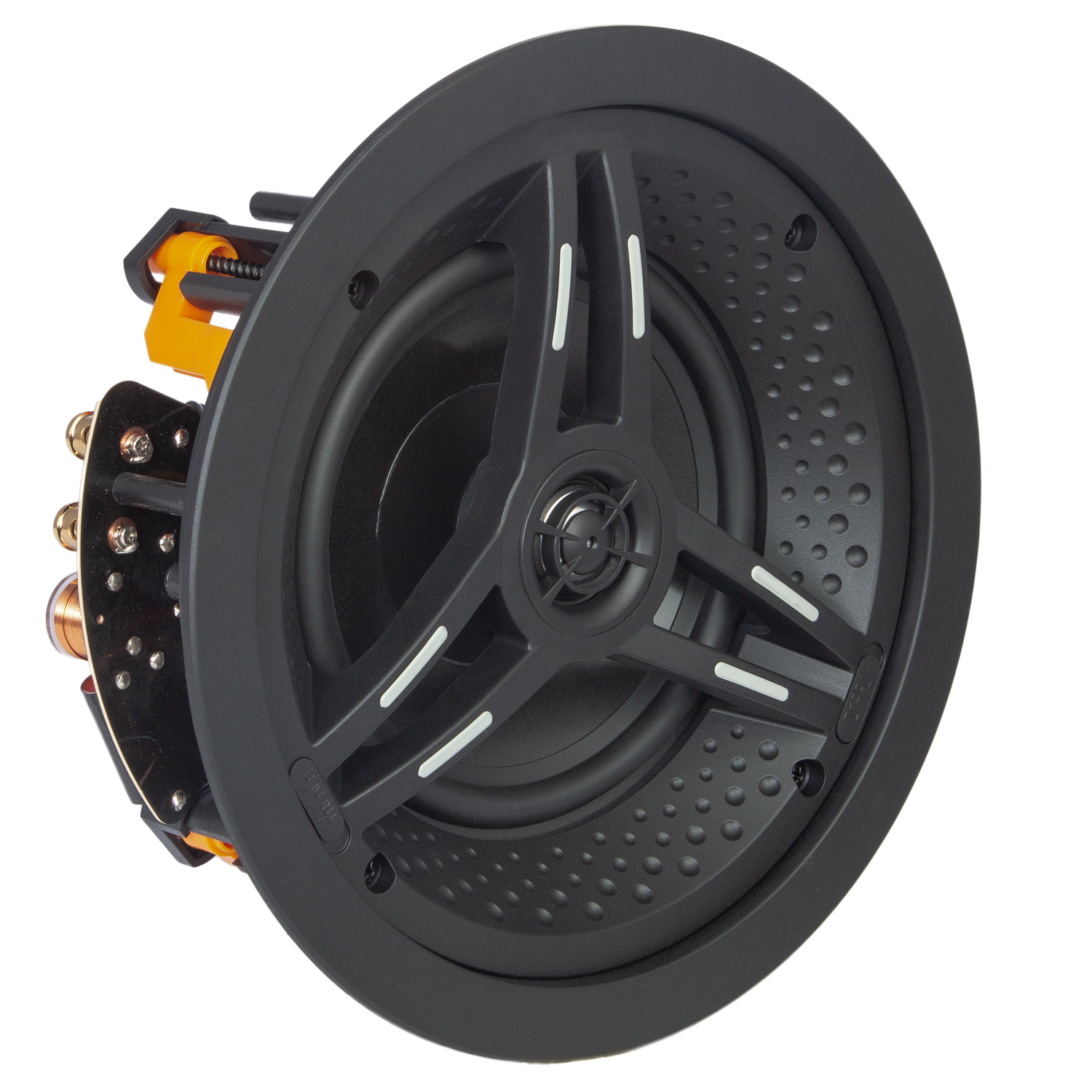

DX-Grand Series- 6 1/2 " In-Ceiling Speaker - Graphite Injected Poly Cone 1" Pivoting Aluminum Tweeter (Pairs)

Experience the best seats in the house with the Grand Stage Series. Explosive dynamics, immersive soundstage, and nuanced realism.


Featuring a Graphite Carbon Composite Infused Polypropylene Woofer and 1-inch aluminum dome tweeter with tweeter and vocal contour switches. Ideal for hi-fi music listening, home theater and media room applications where high performance is critical.


Dynamic Room Filling Sound
Low Crossover points and the stiff, lightweight, and durable 6 1/2 inch graphite injected woofer cone produces tight bass and transparent midrange for a crystal-clear dynamic sound

Quick, Responsive Highs
Aluminum dome tweeters are lightweight, strong and respond instantaneously to changes in music or movies

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Vocal and Tweeter Enhancement Switches

Low Profile Grill
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into any décor

Easy-Grip Tweeter Bridge
Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Precision Tooled Diffusion Baffle
scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.

Secure Connection
All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Timber and Performance Matched
Expect consistent dynamic and detailed sound in every Grand Stage series speaker


Woofer Size: 6-1/2" / 160mm

Woofer Construction: Graphite Injected Polypropylene Cone

Tweeter: 1" / 25mm Pivoting Aluminum Dome

Frequency Response: 50Hz-20kHz

Impedance: 8 (Ohms)

Power Handling: 120 (Watts)

Sensitivity: 88 (dB)

Timbre: Timbre-Matched to all Grand Stage Series Speakers

Dimensions: 9-5/8" / 237mm Diameter x 3.94" / 100 mm Depth

Hole Cutout Dimensions: 8-1/4" / 210 mm Diameter

Mounting Depth: 3.81" / 97mm

Other Specifications

Shipping Info
  • Length13 (Inches)
  • Width11.5 (Inches)
  • Height11.5 (Inches)
  • Weight11.76 (Lbs)
  • Unit of MeasurePair
  • UPC844039014429
Other Specifications
  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Graphite Injected Polypropylene Cone
  • Tweeter 1″ / 25mm Pivoting Aluminum Dome
  • Frequency Response 50Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 120 (Watts)
  • Sensitivity 88 (dB)
  • Timbre Timbre-Matched to all Grand Stage Series Speakers
  • Dimensions 9-5/8″ / 237mm Diameter x 4.6″ / 117 mm Depth
  • Hole Cutout Dimensions 8-1/4″ / 210 mm Diameter
  • Mounting Depth 3.81″ / 97mm
