Nice/SpeakerCraft / In-Ceiling Speakers · SC-AIM282-MK3
AIM282 MK3
In-Ceiling Speaker

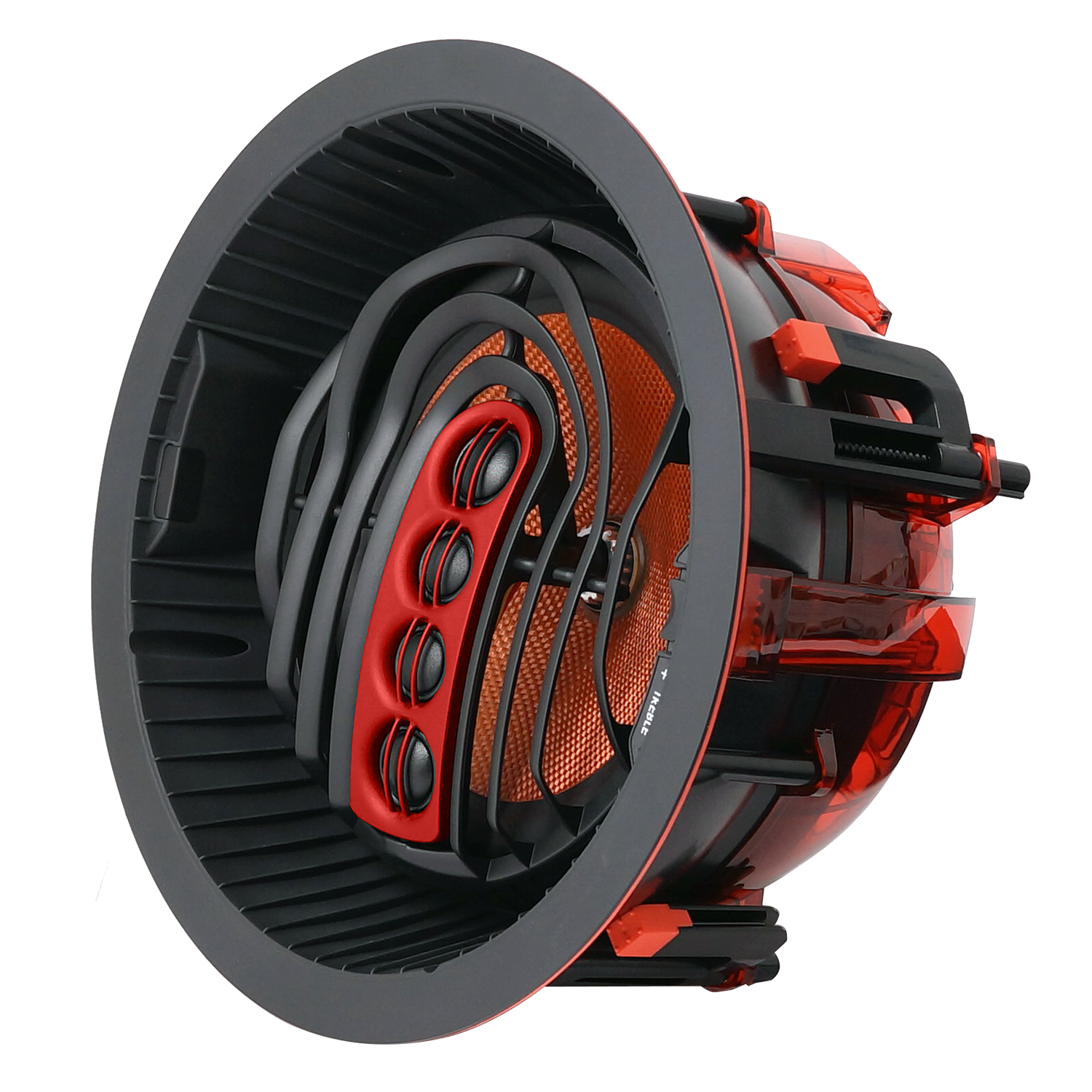

The AIM282 MK3 features a 15° pivoting 8″ glass fiber woofer, ARC tweeter array with four silk dome tweeters, and an updated crossover design for modern distributed audio and object-based surround platforms.
8″
Glass Fiber Woofer
±15°
Pivoting Arc Array
4
Silk Dome Tweeters
5-YEAR
Limited Warranty
OVERVIEW
The Legend.
ReVoiced.
The AIM282 MK3 features updated voicing to support modern installations demanding sonic performance for distributed audio and advanced object-based surround audio platforms such as Dolby Atmos, Auro-3D, and DTS:X. The refined crossover design employs both symmetrical and asymmetrical Linkwitz-Riley filtering circuits which improve phase coherence, acoustic symmetry, and power handling for a smooth transition between frequency bands. Inspired by the line arrays used in concert venues, the ARC Tweeter Array features four tweeters oriented along a pivoting arc, sending high frequency sound waves farther into the listening area than traditional loudspeakers with a more carefully defined sound pattern.
Key Features
- Proprietary ARC Tweeter Array with four silk dome tweeters for uniform, aim-able high-frequency coverage
- ±15° pivoting woofer and 359° rotational ARC tweeter array for precise sound placement
- Acoustic Isolation Technology decouples the speaker housing from surrounding materials for cleaner sound
- Updated WavePlane technology acts as an acoustic lens for broader high frequency dispersion
- Vortex Eliminators reduce sound turbulence at the baffle edge, eliminating tunnel effect
- Symmetrical and asymmetrical Linkwitz-Riley crossover for highest sound quality with less distortion
SPECIFICATIONS
Engineered for
Precision.
Built for Performance.
Woofer
8″ Glass Fiber Cone
Tweeters
(4) Silk Dome (2× 3/4″, 2× 5/8″)
Woofer Pivot
±15°
Tweeter Array Pivot
±15° / 359° Rotation
Crossover
Symmetrical & Asymmetrical Linkwitz-Riley
Height
8 in
Length
13.6 in
Width
13.7 in
Weight
8.7 lbs
Warranty
60 Months
WARRANTY
Built to Last.
Backed by Confidence.
Backed by a 60-month limited warranty, the AIM282 MK3 is engineered with Acoustic Isolation Technology and premium materials for reliable, long-lasting performance in any installation.
RESOURCES
Product
Downloads
AIM MK3 Datasheet
Experience the AIM282 MK3.
Precision Sound. Total Control.
From the proprietary ARC Tweeter Array to the updated WavePlane technology, every detail is engineered for superior audio performance in any space.
