Nice/SpeakerCraft / In-Ceiling Speakers · SC-AIM272-MK3
AIM272
MK3

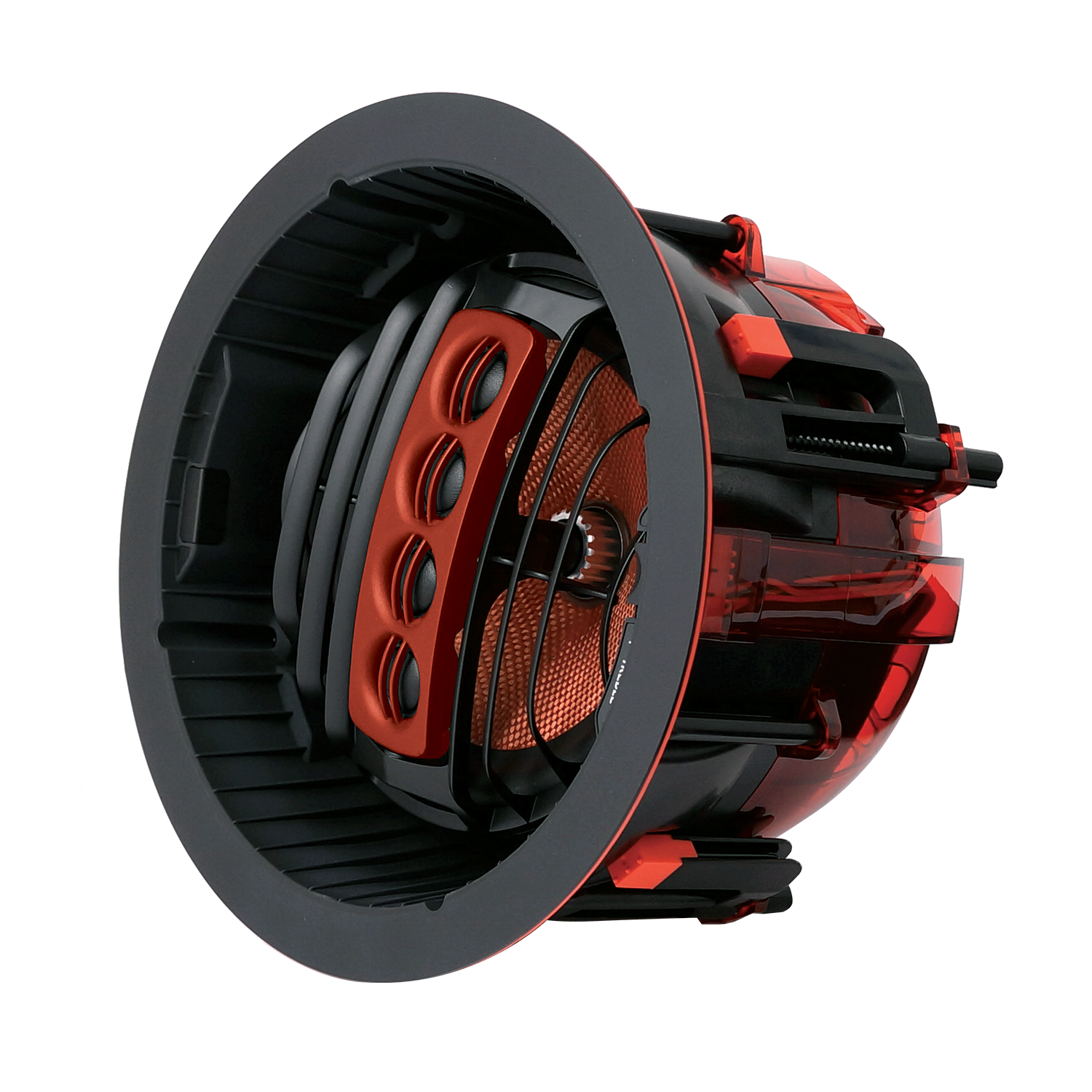

The 7″ 2-way in-ceiling speaker with a 15° pivoting glass fiber cone woofer, 15° pivoting & 359° rotational ARC tweeter array, and updated crossover design — engineered for heightened aesthetics and enhanced performance.
7″
Glass Fiber Woofer
30° / 359°
Pivot + Rotation
4 × 5/8″
Silk Dome Tweeters
5 Year
Warranty
Overview
The Legend.
ReVoiced.
The Nice/SpeakerCraft AIM Mk 3 features updated voicing to support modern installations demanding sonic performance for distributed audio and advanced object-based surround audio platforms such as Dolby Atmos, Auro-3D, and DTS:X. The refined crossover design employs both symmetrical and asymmetrical Linkwitz-Riley filtering circuits which help improve phase coherence, acoustic symmetry, power handling and deliver a smooth transition between the different frequency bands. The result is better blending of the drivers, smoother frequency response, and improved overall performance.
Key Features
- Proprietary ARC Tweeter Array with 15° pivot and 359° rotation for precise sound placement
- Acoustic Isolation Technology decouples speaker housing from the ceiling, eliminating structural resonance
- Updated WavePlane technology acts as an acoustic lens for cleaner, wider high frequency dispersion
- Vortex Eliminators reduce sound turbulence for optimal dispersion without tunnel effect
- Updated Linkwitz-Riley crossover design for smoother frequency response and greater phase coherence
- 7″ glass fiber woofer with butyl elastomer surround delivers greater bass response with less distortion
Specifications
Engineered
for Precision.
Built to Last.
Woofer
7″ Glass Fiber Cone
Tweeter
4 × 5/8″ Silk Dome ARC Array
Woofer Adjustment
±15° Pivot (30° Total)
Tweeter Adjustment
±15° Pivot / 359° Rotation
Crossover Design
Linkwitz-Riley Symmetrical & Asymmetrical
Surround
Butyl Elastomer
Dimensions (H×W×L)
7.6″ × 12.3″ × 12.3″
Weight
6.95 lb
Grille
Magnetic, Flangeless
WavePlane
Updated HF Dispersion Lens
Acoustic Isolation
Co-molded Lower Density Compounds
Warranty
5 Years (60 Months)
Warranty
Built to Last.
Backed by Confidence.
The SC-AIM272-MK3 is backed by a comprehensive 5-year warranty. Acoustic Isolation Technology with co-molded, lower density compounds ensures more stable, acoustically repeatable installations that stand the test of time. You hear the speaker as it is meant to sound — not colored by the resonance of the material on which it is mounted.
Resources
Downloads
& Documents
AIM Mk 3 Series Datasheet
Heightened Aesthetics.
Enhanced Performance.
The AIM Mk 3 has been totally recrafted — from home theater to whole home audio, experience sound precisely directed wherever an audio impact is desired.
